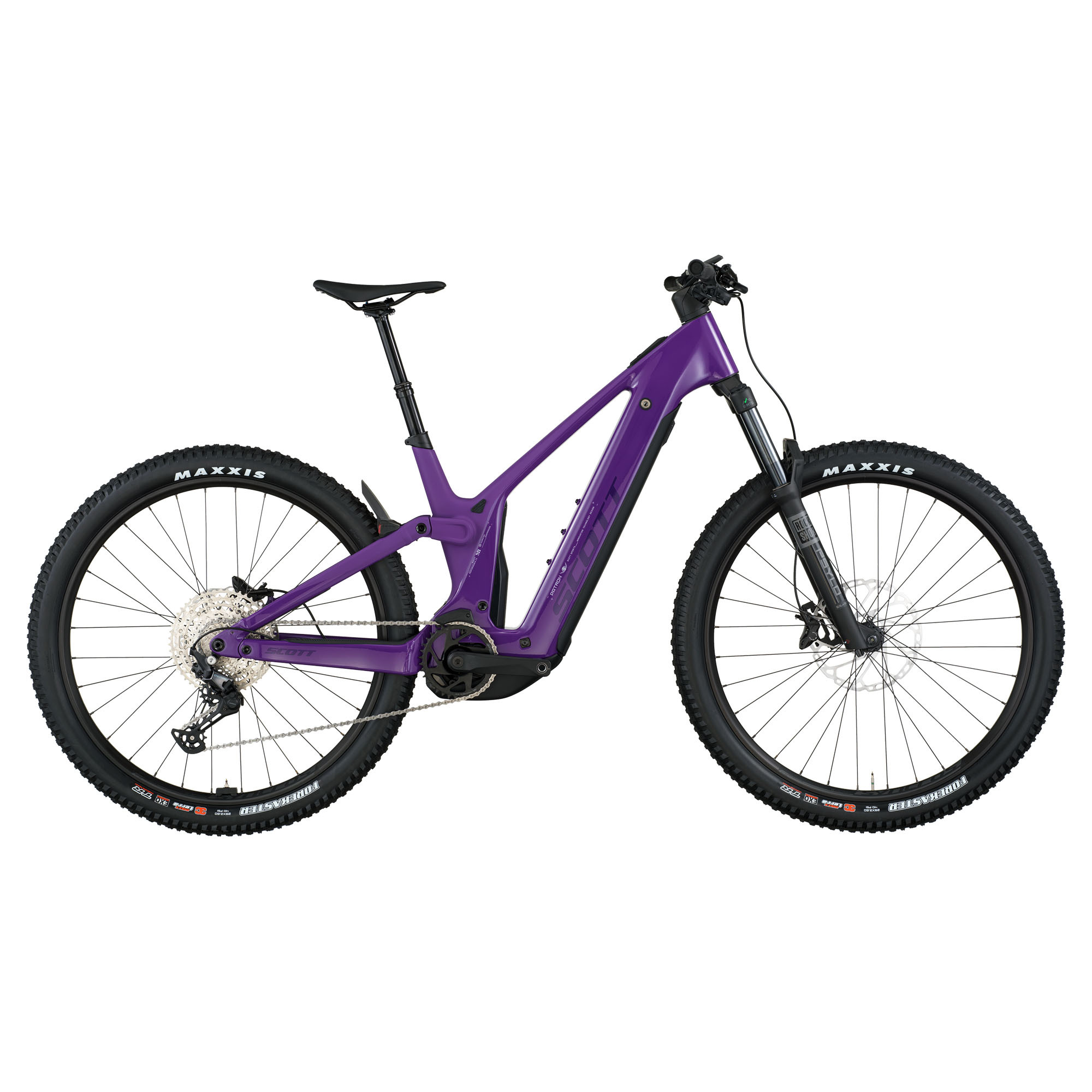

Patron 920
Produktnummer:
73298
5.999,00 €*
Versandzeit 3 Werktage
Produktinformationen "Patron 920"
| Anschrift Inverkehrbringe: | Gutenbergstraße 27, 85748 Garching |
|---|---|
| Antriebsart: | Elektro-Motor |
| Anzahl Gänge: | 12 Gang |
| BB-Drop (mm): | 36,2 mm |
| Bereifung: | Maxxis Forekaster, 120TPI Foldable Bead, EXO, TR Tubeless ready, 3C Maxx Terra |
| Bidex Akku: | Bosch PowerTube 800 |
| Bidex Akkutyp: | Lithium Ionen |
| Bremse: | SHIMANO MT520 4 Piston Disc |
| Bremse hinten: | SHIMANO MT520 4 Piston Disc |
| Bremsen: | hydraulische Scheibenbremse |
| Bremsscheibe: | SM-RT64 CL 220mm |
| Bremsscheibe hinten: | SM-RT64 CL 203mm |
| Display: | Bosch System Controller, Intuvia 100, Mini Remote |
| Drehmoment (Nm): | 85 |
| Einsatzbereich: | Berge & Offroad |
| Einsatzzweck ShopFilter: | Sport |
| Farbe: | pansy purple |
| Farben (für Webshops): | violett |
| Farben für Shopfilter: | lila |
| Federweg (hinten): | 150 mm |
| Federweg (vorne): | 150 mm |
| Felge: | Syncros MD30 / 32H / 30mm / Pin Joint, Tubeless ready |
| Felge hinten: | Syncros MD30 / 32H / 30mm / Pin Joint, Tubeless ready |
| Frontleuchte: | Pre-installed light cable |
| Gabel: | RockShox Psylo Silver RC Air / E-Bike / Comp & Reb Adj. / QR Axle 15x110mm axle, 44mm offset / taper |
| Gewicht **: | 24,8 kg |
| Griffe: | Syncros Performance XC lock-on grips |
| Hersteller: | SCOTT Sports SA |
| Hersteller Anschrift: | Route du Crochet 11, 1762 Givisiez |
| Hersteller Kontakt: | info@scott-sports.com |
| Hinterbaufederung: | X-Fusion NUDE 5 RLX Trunnion, SCOTT custom w. travel / geo adj., 3 modes: Lockout-Traction Control-D |
| Inverkehrbringer: | SCOTT Sports AG |
| Kapazität (Wh): | 800 |
| Kassette: | SHIMANO CS-M6100 / 10-51 |
| Kette: | SHIMANO CN-M6100 |
| Kettenstrebenlänge (mm): | 453,5 mm |
| Kontakt Inverkehrbringer: | info@scott-sports.com |
| Kurbelgarnitur: | FSA Alloy, FSA 12 Speed 34T chainring |
| Ladegerät: | 4A Charger |
| Lenker: | Syncros Hixon 2.0 Alloy 6061, Size S & M 15mm rise / Size L & XL 25mm rise / back sweep 8° / 780mm |
| Lenkerbreite (mm): | 780 mm |
| Marke Akku: | Bosch |
| Modellserie: | Patron |
| Motor Bezeichnung: | Bosch Performance Line CX 25/85Nm |
| Motorhersteller: | Bosch |
| Motorleistung (Watt): | 250 |
| Motortyp: | Mittelmotor |
| Motorunterstützung: | bis 25 km/h |
| Nabe (Hinterrad): | FORMULA ECT-148M / Boost 148x12mm |
| Nabe (Vorderrad): | FORMULA CL-811 / 15x110mm |
| Nabe/Schaltungsart: | Shimano Deore RD-M6100 SGS, Shadow Plus / 12 Speed |
| Oberrohr horizontal (mm): | 579,3 mm |
| Produktart: | Erwachsenenfahrrad |
| Produktkategorie: | E-MTB Fully |
| Radgröße: | 29 Zoll |
| Radstand (mm): | 1212,8 mm |
| Rahmenform: | Diamant |
| Rahmengröße (Wert): | 405 mm |
| Rahmenhöhe: | S |
| Rahmenmaterial: | Aluminium |
| Rahmenmaterial ShopFilter: | Aluminium |
| Rahmenspezifikation: | Carbon Main Frame, Alloy SST-CST, Integrated Suspension Technology, Virtual 4 Link kinematic, Adjust |
| Reach (mm): | 439,4 mm |
| Reifengröße (Zoll): | 29 x 2,6 |
| Rückleuchte: | Syncros integrated rear fender light |
| Rücktrittbremse: | nein |
| Sattel: | Syncros Tofino Regular 2.5 |
| Sattelstütze: | Syncros Duncan Dropper Post 2.5, 31.6mm / S size 125mm / M size 150mm / L size 170mm / XL size 200mm |
| Schalthebel: | SHIMANO Deore SL-M6100-IR Rapidfire Plus |
| Schaltungsart: | Kettenschaltung |
| Schaltungsart-Gänge: | Kettenschaltung |
| Schaltwerk: | SHIMANO Deore RD-M6100 SGS, Shadow Plus / 12 Speed |
| Sitzrohrwinkel (Grad): | 77,4 ° |
| Speichen: | Stainless Black |
| Stack (mm): | 643 mm |
| Steuerrohrlänge (mm): | 120 mm |
| Steuerrohrwinkel (Grad): | 65,8 ° |
| Steuersatz: | Syncros - ACROS Angle adjust & Cable Routing HS System, +-0.6° head angle adjustment, ZS56/28.6 ZS |
| Straßenausstattung: | nein |
| Vorbau: | Syncros AM 2.0, Syncros Cable Integration System, 4° rise / 6061 Alloy / 31.8mm / 1 1/8" |
| Vorbauwinkel (Grad): | 4 ° |
| Zulässiges Gesamtgewicht: | 130 kg |
